"Cain's Lair Theater" Construction Photos
Most recent photos at top of page
(Click Photo for Enlarged View, 800x600)

May 26, 2002
(The Theater is 95% complete)
We had our Premier the night of May 17, 2002.
 "Last of the Mohicans" was enjoyed by all.

Construction Photos

Fabric Installation Started!!


Right wall center panel



Right wall Right Surround Speaker column


Closeup corner of column and soffit


Rear of room, secret door


Carpet installed, Theatershield and poly batting up!

Front, Screen wall


Right Wall


Left Wall

Rear Wall


Mike Favors, the carpet guy, makes a final check

Mr. Favors handiwork..
 (Front Stage) Nice job Mike!

Rear door, MDF on piano hinge.  Door into garage.

Theatershield and Polyester batting on top half of right wall


Light Trey completed, Screenwall completed, Ceiling cans installed, ready for carpet.

Front, Screen wall

Right Wall

Left Wall

Rear Wall
Stewart Screen in the shipping Crate

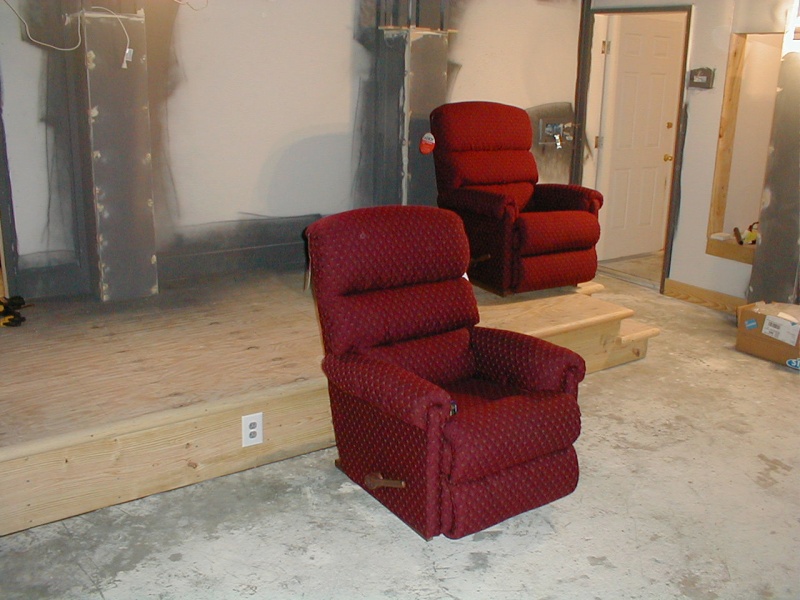

Two of my Lazyboy Chairs in the theater for the first time
Lee, Lew, and Sandy (supervising screen installation)
Lee takes the wraps off of the screen
Lee & Lew "working"
Stewart curved screen in place!
Close-up of the screen's curve
Shot from behind the screen


Furring strips almost complete, light trey in-place but not painted, ceiling painted final color, columns painted

Front, Screen wall

Right Wall

Left Wall

Rear Wall


Side Surround Speaker

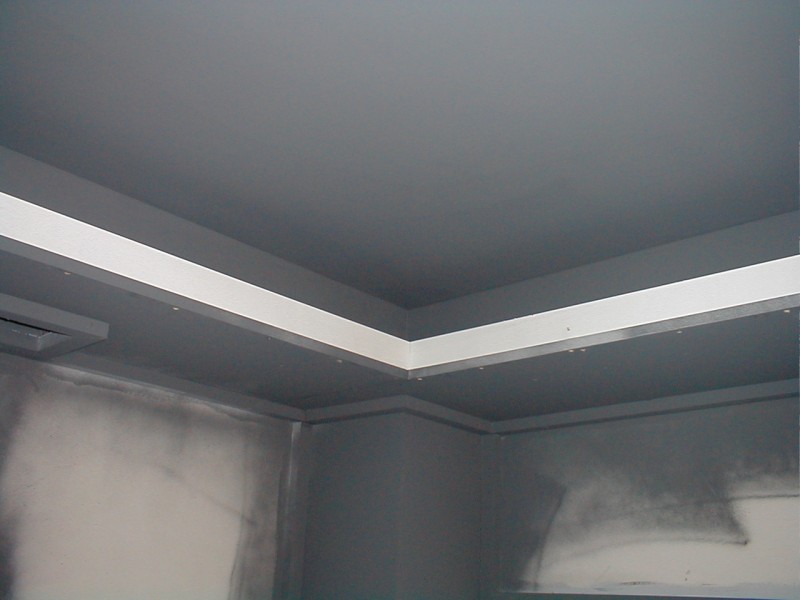

Light Trey/Soffit
Note: The Light trey strip seen in these pictures will NOT remain white, it will be painted the ceiling color.


Columns complete, platform complete, rack installed, furring strips and baseboard installation started

Front, Screen wall
Right Wall
Left Wall, Equipment Rack in place
Rear Wall

Front, Sides, Rear & Speaker Column Close-ups

Front, Screen wall
Right Wall
Left Wall
Rear Wall
Lew inserts speaker section of rear surround speaker column
Shot of rear surround speaker column
Rear Left Surround Speaker in Speaker column from front
Rear Left Surround in Speaker column from side
 (fits like a glove!)


Rear Seating Platform & HVAC Columns Built

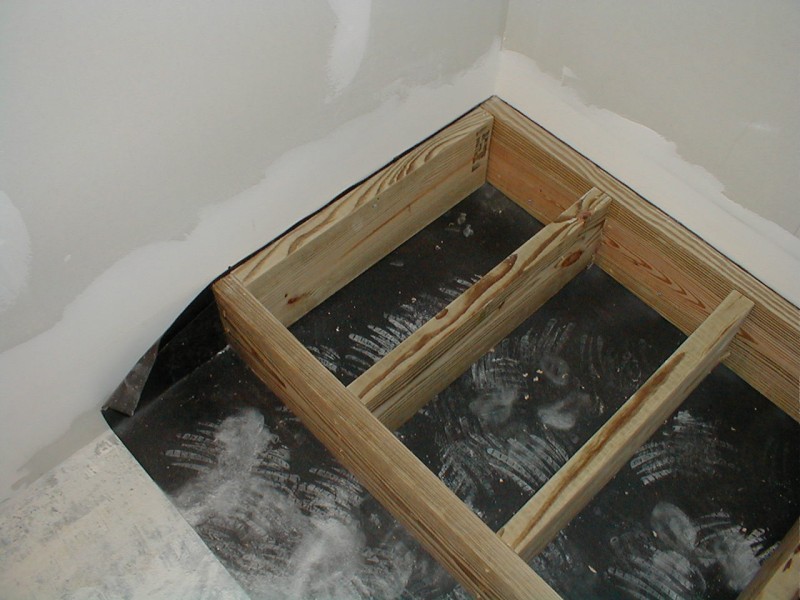

Lew starts seating platform
Seating platform
Seating platform
Seating platform stuffed with insulation, ready for first layer of plywood
Seating platform gets first of three layers of plywood
 (each layer separated by 30 lb roofing felt)
Platform with all three layers of plywood
Front right HVAC Column
Right side finished HVAC supply columns


All Soffits Finished, Ready for Rear Platform Construction

Front, Screen wall
Right Wall
Left Wall
Rear Wall
Screen wall from ceiling, shows stage better
Stage shown from side, shows front radius better
Cutaway detail of rear soffit, shows light tray on left
Front right stage,
shows front light tray miter


First Brief Screening

First Customers!!
(My Mom and my Aunt Alice
{the Theater's Interior Designer})
(Note: Projector mounting is temporary!)

(Note: Image shone on painted sheetrock wall only)


Room given primer coat, and soffit construction begins

Front, Screen wall
Right Wall
Left Wall

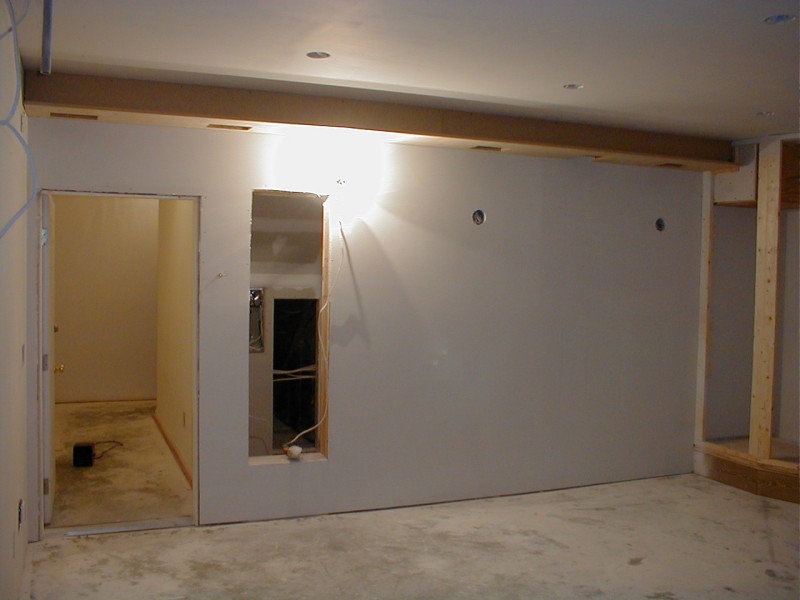

Rear Wall
Soffit & Return Box
Equipment Rack & Power

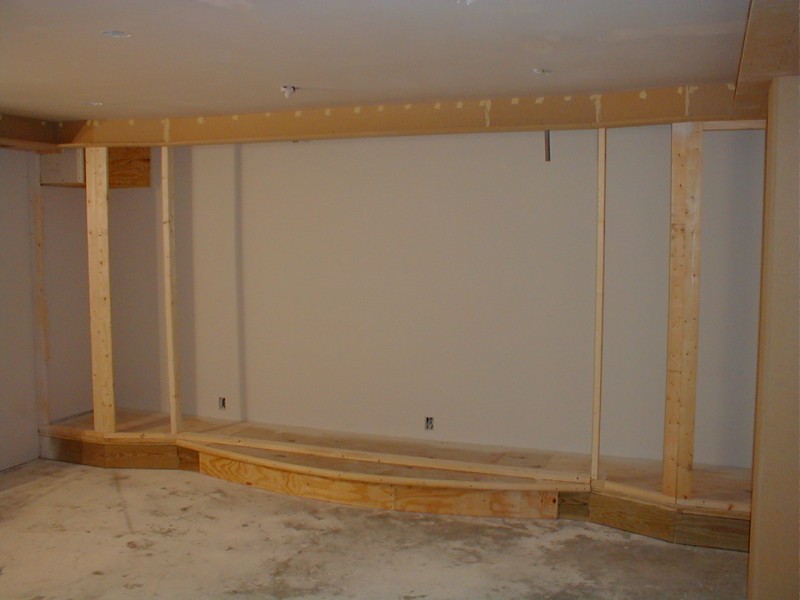

Close-up of Front Stage & Radius
Seleco HT300 (projector) on my Dining Room Table
